Simulation of Car
At DOFracing, we specialise in providing professional motion driving simulation solutions designed to help driving training and research achieve efficient and safe training results.
Achieving a safe, immersive, and hyper-realistic driving environment requires a combination of high-performance hardware and customised simulation software, an area in which DOFracing has already established a high level of expertise.
Product Introduction of Racing Training Simulator

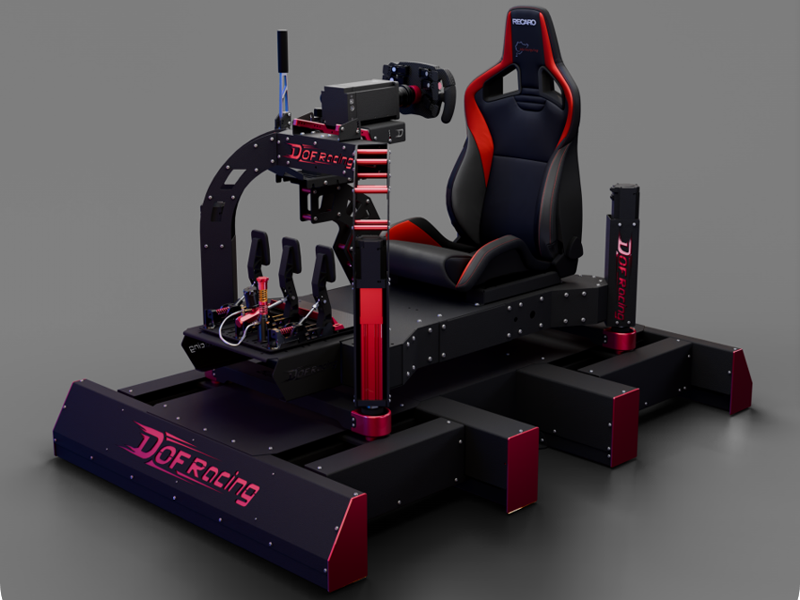

DR-7-Axis 6DOF Full Set Parameter
L*W*H : 1880*1250*1620mm
Acceleration : 0.8G
Angel Speed : 50°/s
Weight : 395KG
Load Capacity : 350KG
Power : 7KW
Vibration Frequency Range : 0-100Hz
DOF : 6
Latency : <8ms

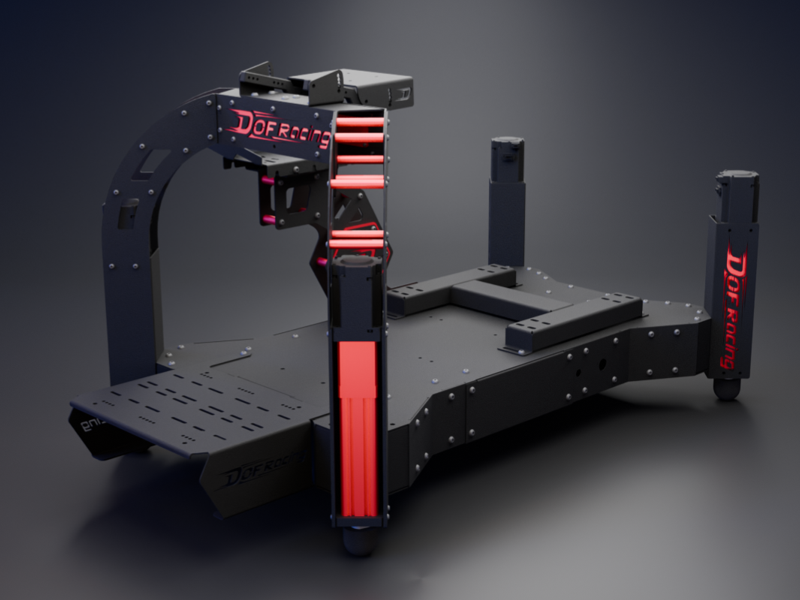

DR-4-Axis 3DOF Set Parameter
L*W*H : 1420*805*750mm
Weight : 150KG
Heave : 100mm
Acceleration : 0.8G
Angel Speed : 50°/s
Pitch : -5.0° , 5.0°
RoIl : -8.0° , 8.0°
Load Capacity : 500KG
Power : 3KW
Vibration Frequency Range : 0-100Hz
Latency : <8ms

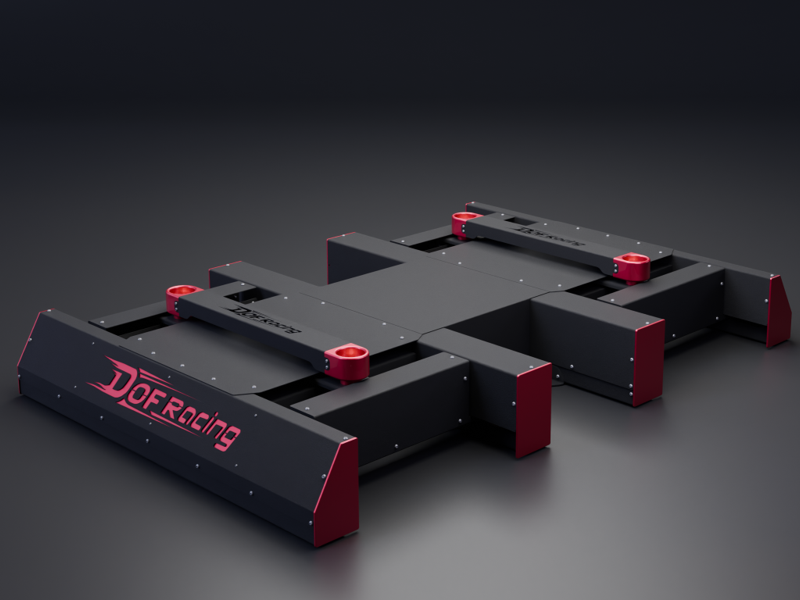

DR-3-Axis 3DOF Set Parameter
L*W*H : 1880*1250*250mm
Weight : 200KG
Acceleration : 0.8G
Angel Speed : 50°/s
Yaw : -10.0° , 10.0
Surge : 200mm
Sway : 200mm
Load Capacity : 500KG
Power : 2.4KW
VibrationFrequency Range : 0-100Hz
Latency : <8ms

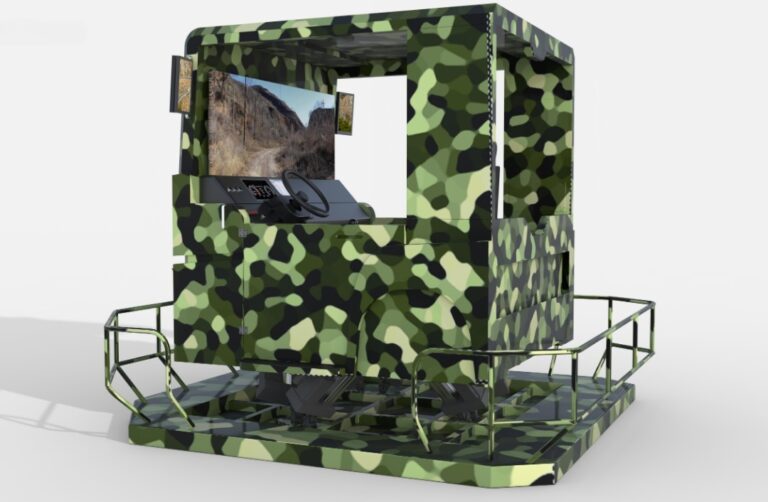

DOFracing Simulation of Car
DOFracing simulation of car combines immersive customised scenarios with a 1:1 replica physics engine, providing driving students with a realistic, safe and efficient driving simulation experience.
For professional driving training tailored to different needs, we offer a variety of simulation scenarios to choose from.
DOFracing Motion Platforms

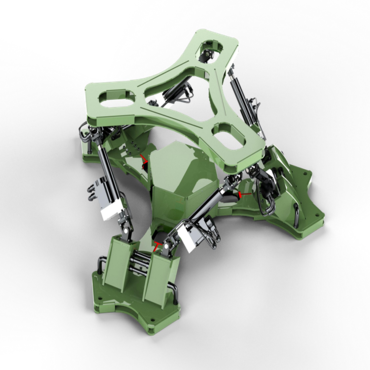

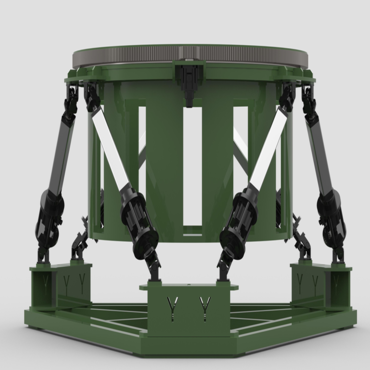

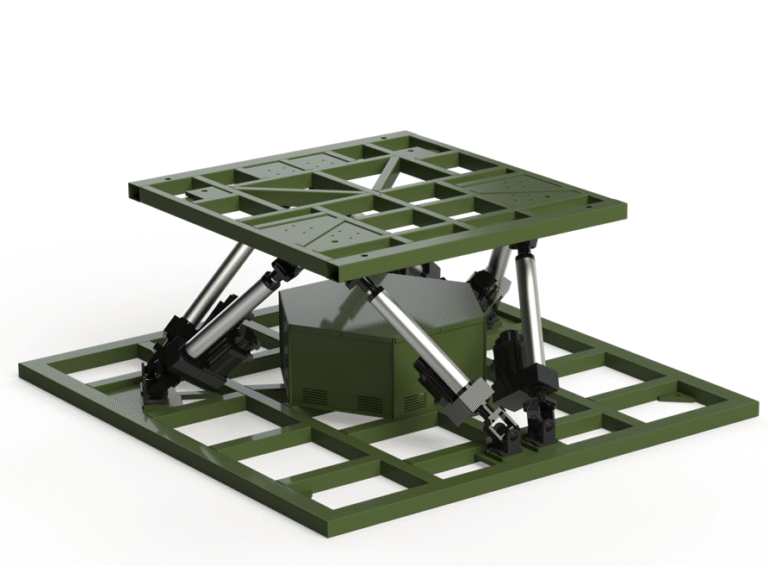

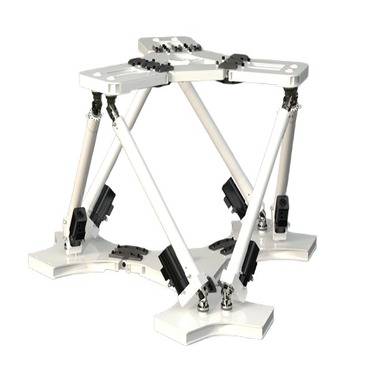

DOFracing 6dof motion platform achieves highly realistic simulation effects through flexible movement in multiple directions, including roll, pitch, yaw, surge, sway, and heave.
FAQs – Dynamic Simulation of Car
What is the difference between static and dynamic simulation?
Static simulation only provide visual and software-based simulation without physical motion feedback.
Dynamic simulation, built on a motion platform, recreate acceleration, braking, turning, and vibrations, offering a far more immersive and realistic driving experience.
What is a 6DOF motion simulator, and why is it important?
A 6DOF (six degrees of freedom) motion simulator allows movement along all three axes (forward/backward, up/down, left/right) and three rotations (pitch, roll, yaw).
This enables full replication of real-world driving dynamics, making it essential for professional driver training, automotive testing, and research.
Which fields use our simulation of car?

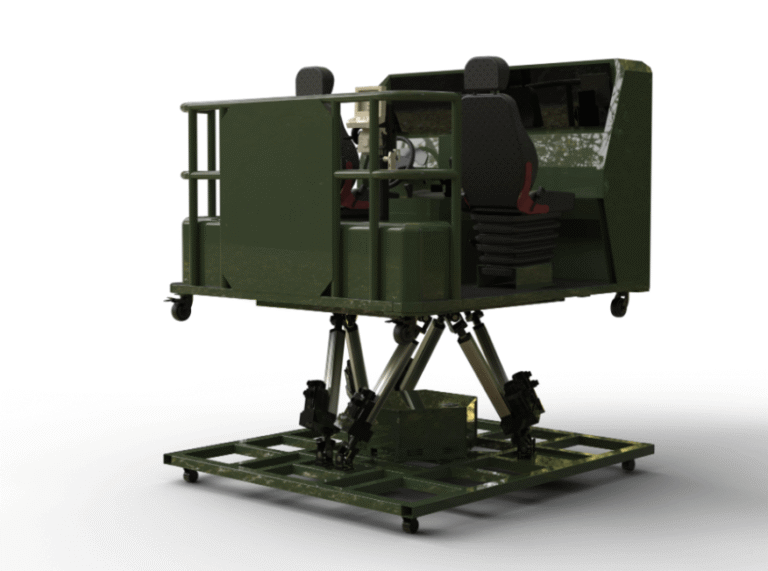

1.Professional driving training institutions (trucks, buses, police vehicles, emergency vehicles)
2.Automobile manufacturers and R&D laboratories for vehicle testing

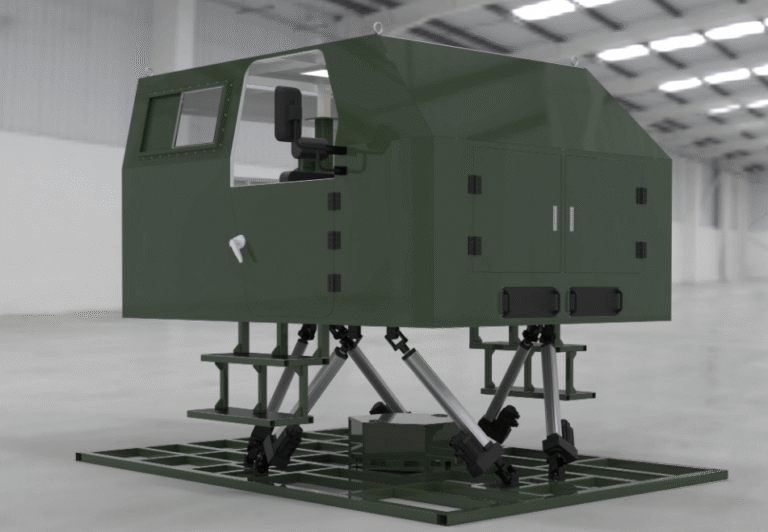

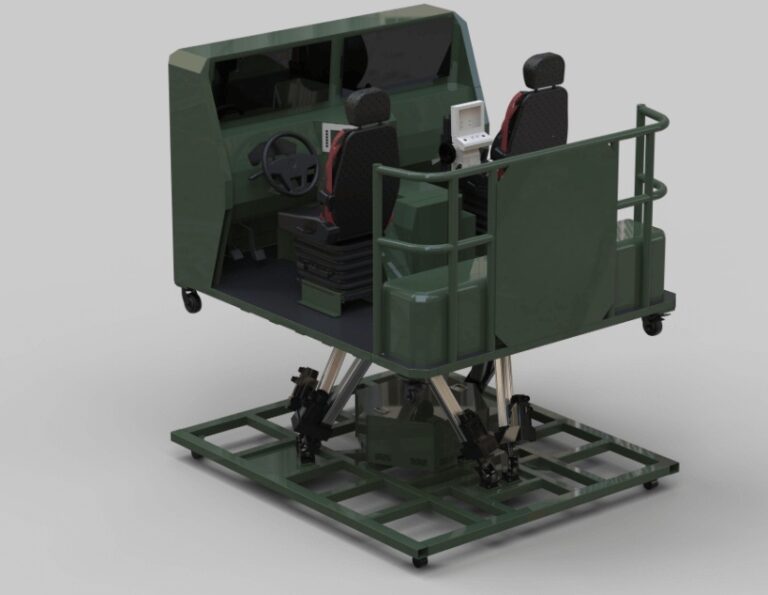

3.Military organisations for tactical vehicle training
4.Universities and research institutions for research into vehicle dynamics and driving behaviour
What types of training scenarios can be simulated?
1.Urban, highway, and rural driving
2.Emergency situations (sudden obstacles, braking, skidding)
3.Adverse weather (rain, snow, fog, ice)
4.Specialized environments (off-road, racetrack, industrial sites)
Can the simulator be customized?
Yes. Both the simulator motion platform and the car simulation software can be tailored to specific vehicle models, driving scenarios, or research needs. We also provide SDKs for integration with third-party programs.
How realistic is the driving experience?
With advanced visual systems, responsive controls, and high-precision motion simulators, drivers experience true-to-life vehicle behavior. Data feedback ensures accurate recording of performance for analysis and improvement.
What are the benefits compared to real-world training?
1.Safe, controlled environment with zero risk of accidents
2.Lower cost than repeated on-road testing
3.Ability to replicate dangerous or rare driving conditions
4.Precise data collection for training and research
